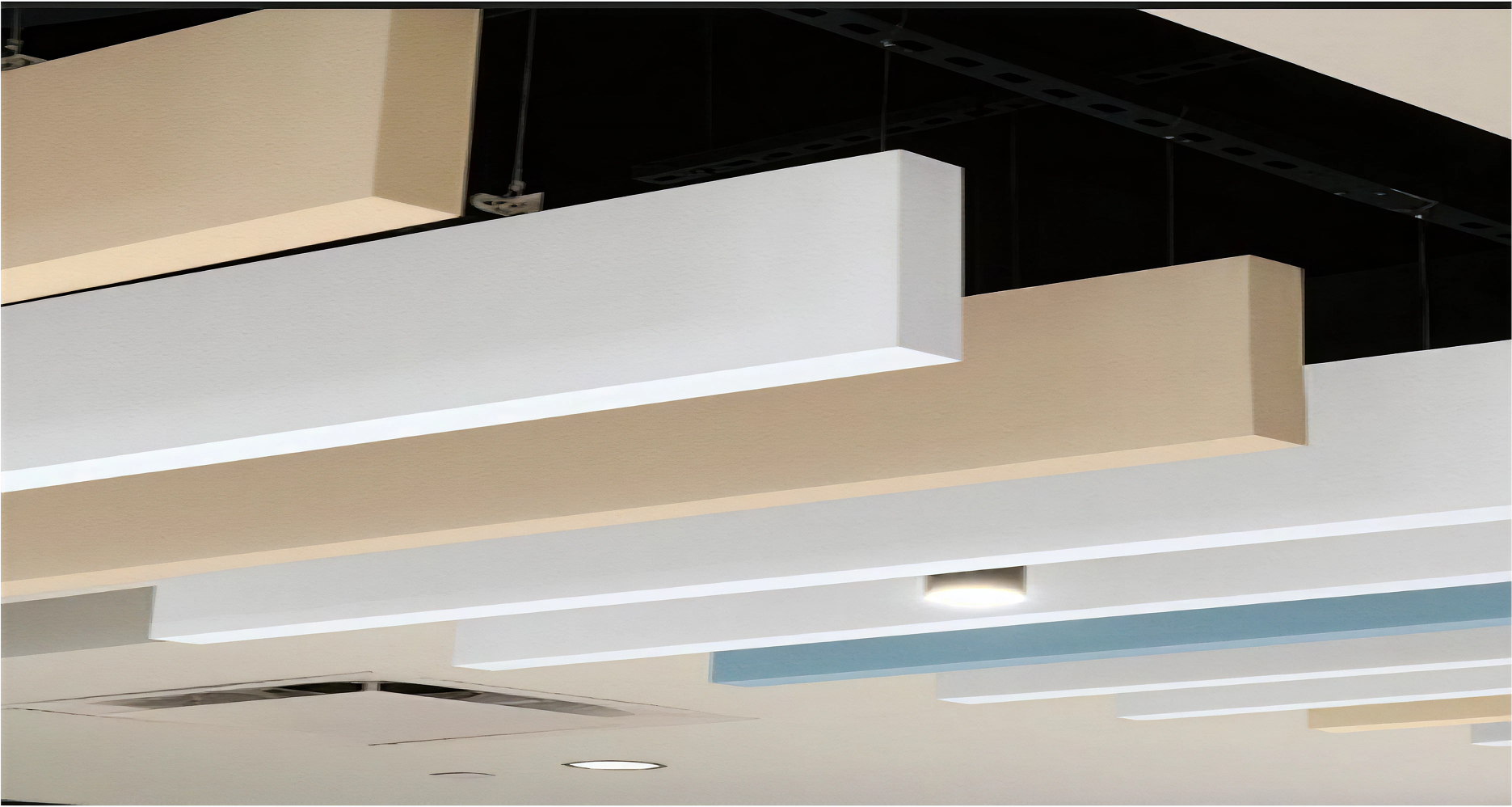

CEILING BAFFLE
Lay-in tile ceiling is elegant, vivid, generous,delicate structure, various types,with perfect fire prevention, moisture-proof function, easy to be leaned, convenient in assembly and dis-assembly, more convenient for line maintenance. It is applicable for office buildings, schools, banks, shopping malls and other places. A variety of colors and specifications is available.
Product Details
– SN1047
– Ingenious Craftsmabship Selected Materials
Glass fiber decorative felt on surface, high-density glass wool inside, no dust, color and shape can customized. Simple and fast construction

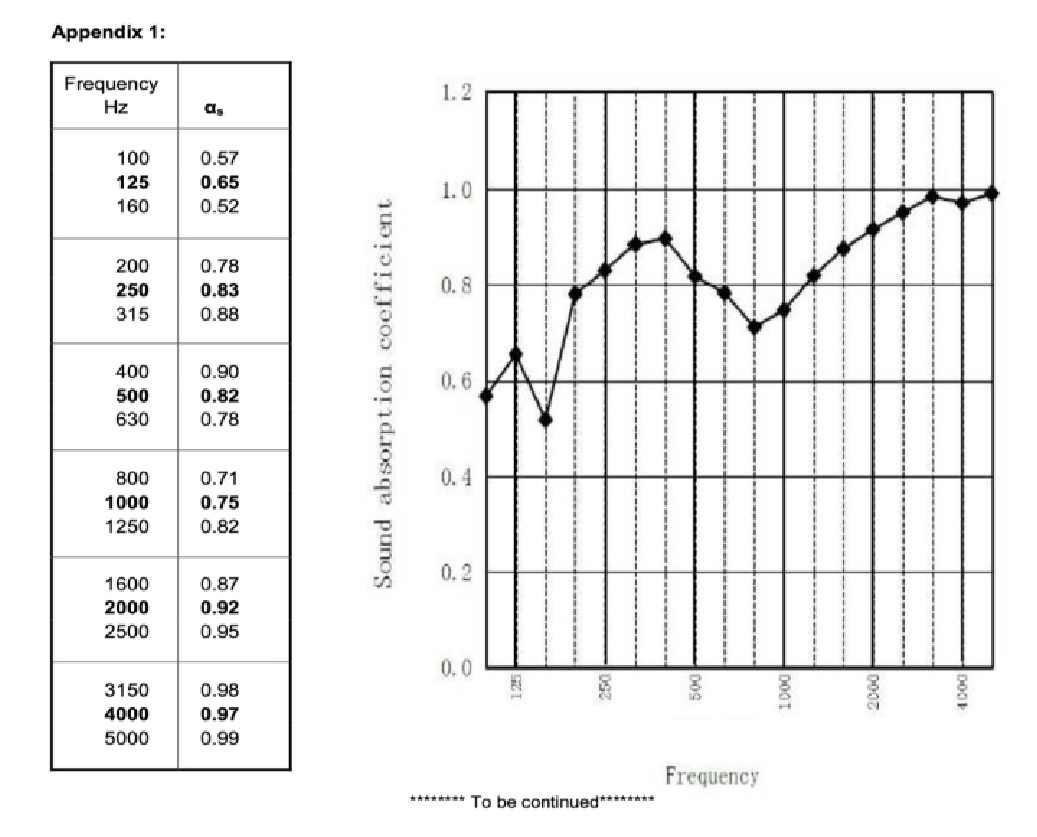

– Sound Abosorption & Noise Reduction
Using high-density glass wool as the base material, the surface is coverd with sound-transmitting paint, and sound waves hardly produce wave reflection on its surface, which can control and adjust the indoor reverberation time, reduce indoor noise, echo etc.

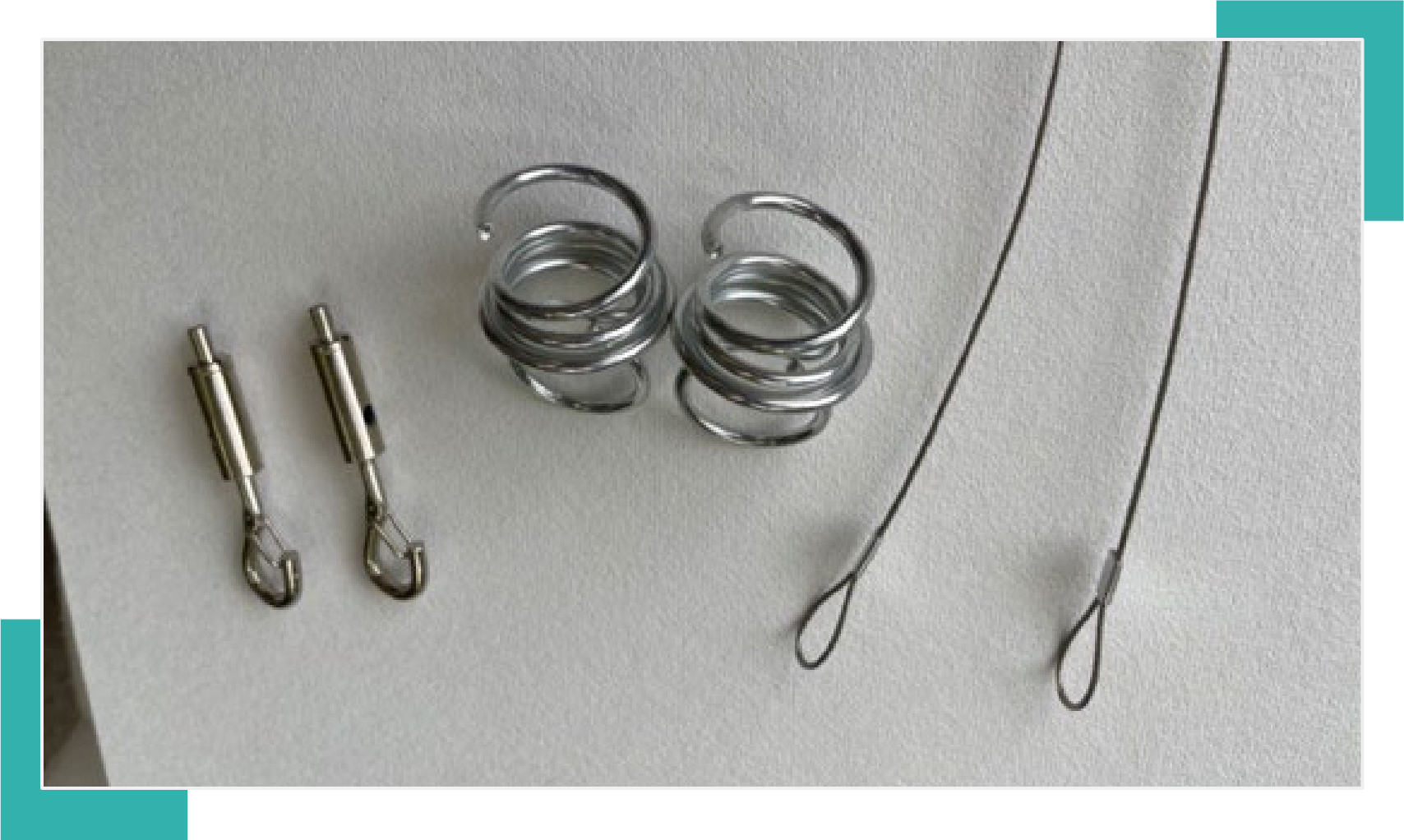

Accessories: ceilling hook, wires, screw hangers etc
● The first installation methods:

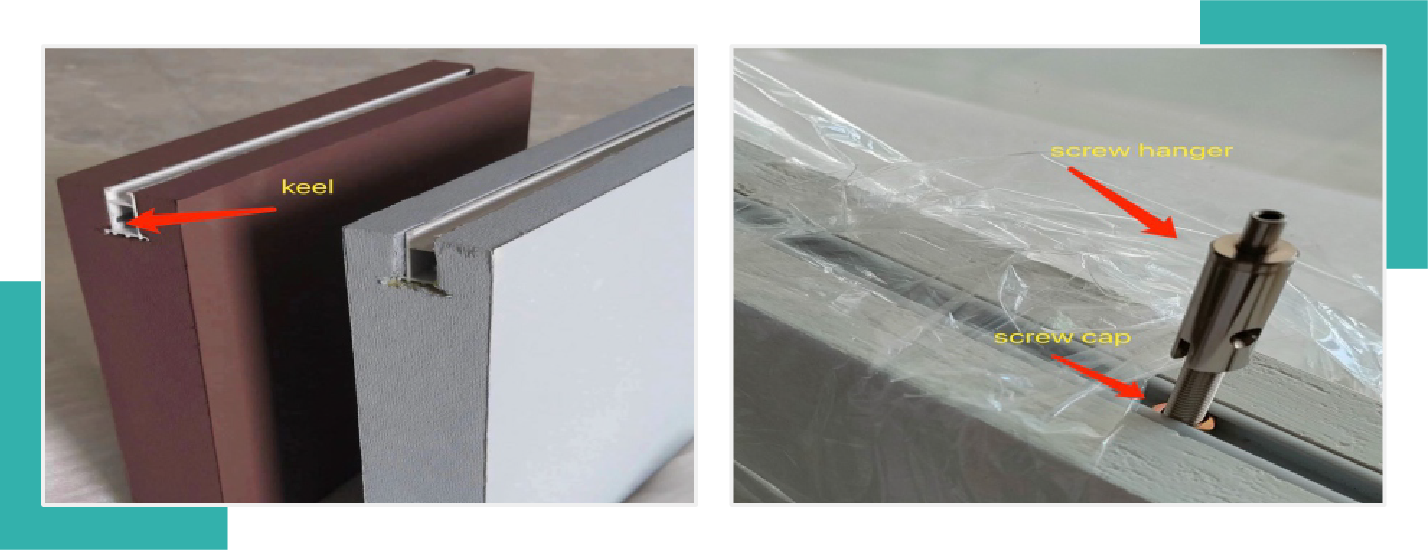

The first step is to put the screw cap into the keel and tighten the screw hanger

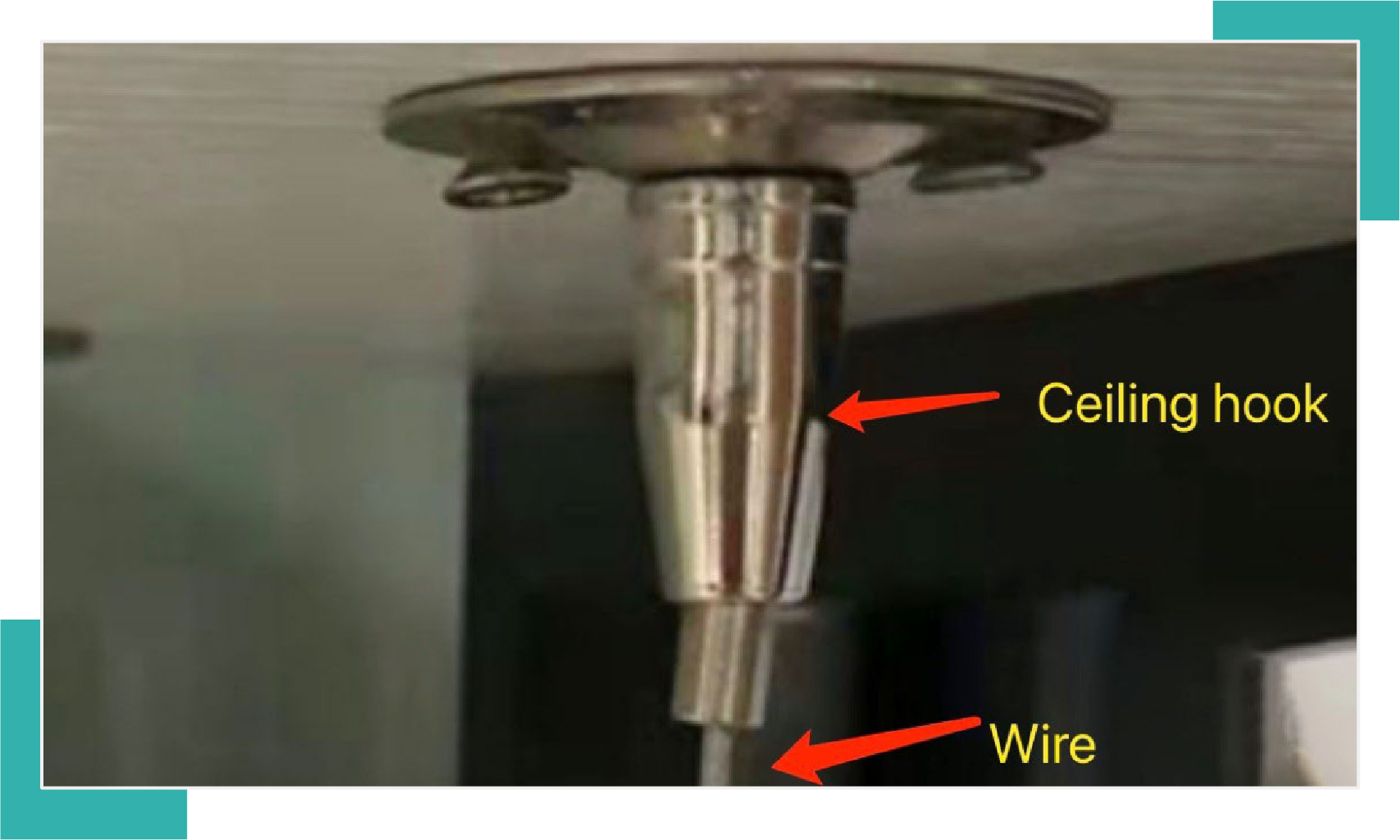

The second step is to directly insert the wire into the screw hanger port and adjust the required length. Then lock the screw hamger on the other end to the ceilling with self-tapping screws.

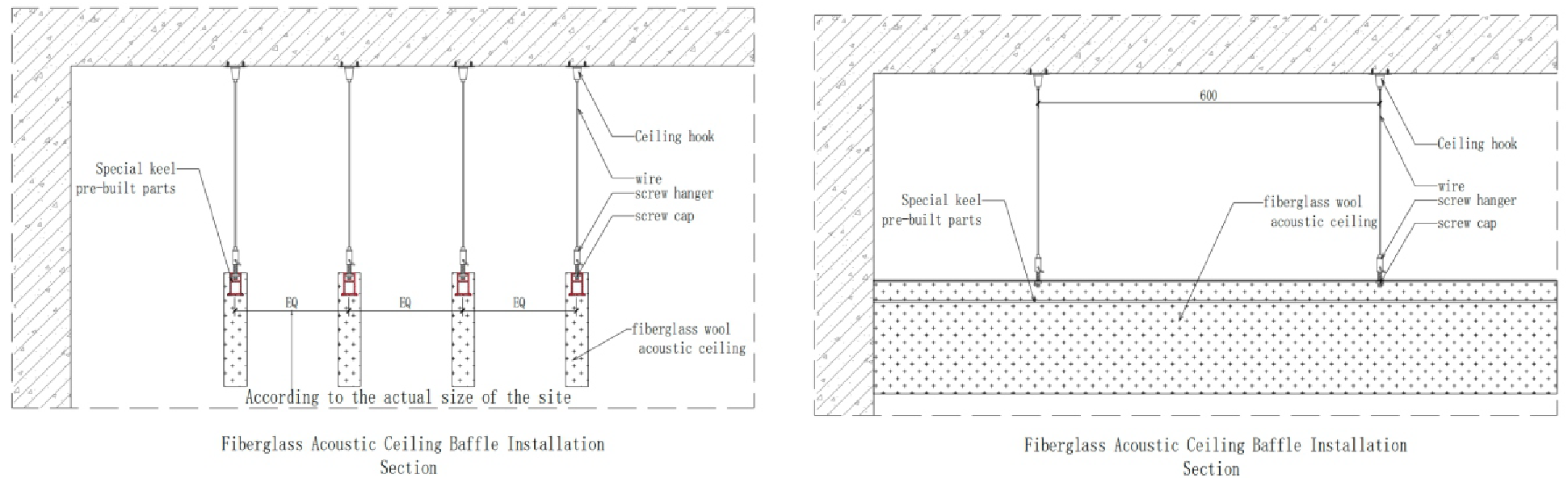

● Drawing Showing:
● The second installation methods:

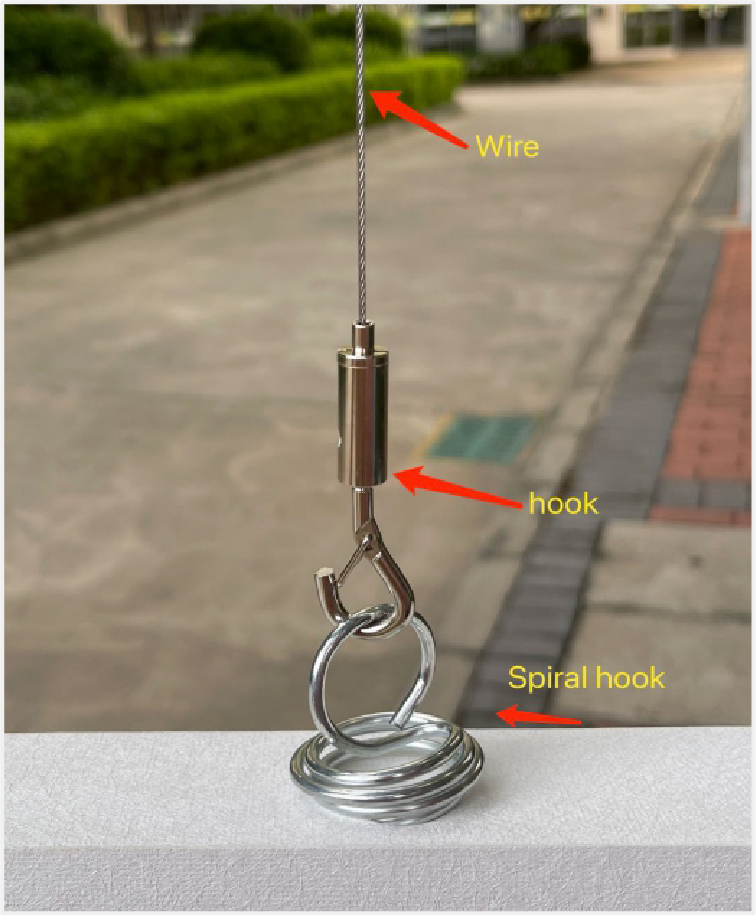

The first step is to set a position on the top of the celling suspension board, and then screw hook into this position,
The second step, hook on the spiral hook,

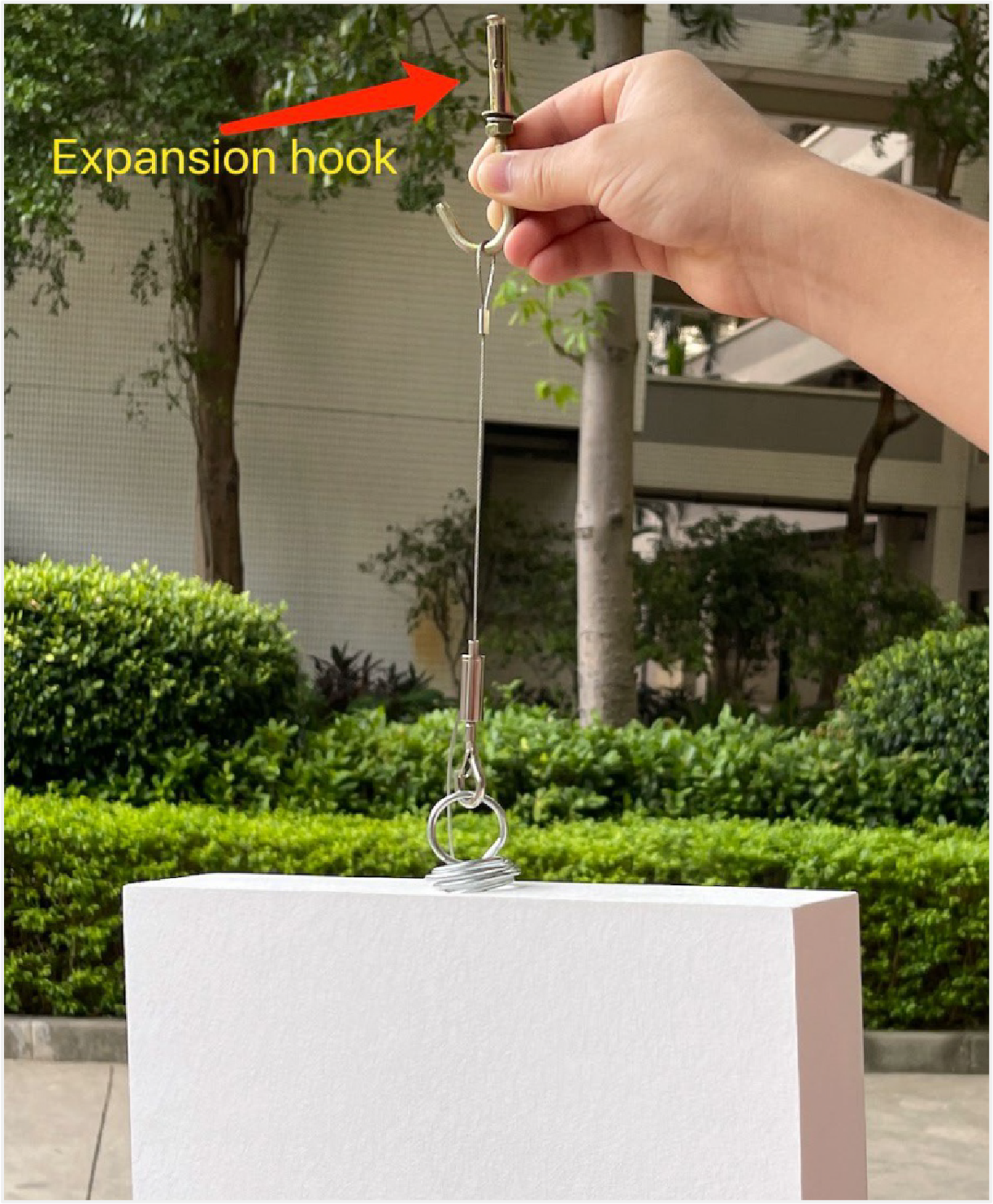

The third step to determibe the position of the ceilling, and insert the celling expansion hook into the celling to fix it,
The fourth step, hang the oher end of the wire rope on the expansion hook of the celling, and adjust the lenght of the wire rope.
● The third installation methods:
Accessories: ceilling hook, wires, screw hangers etc

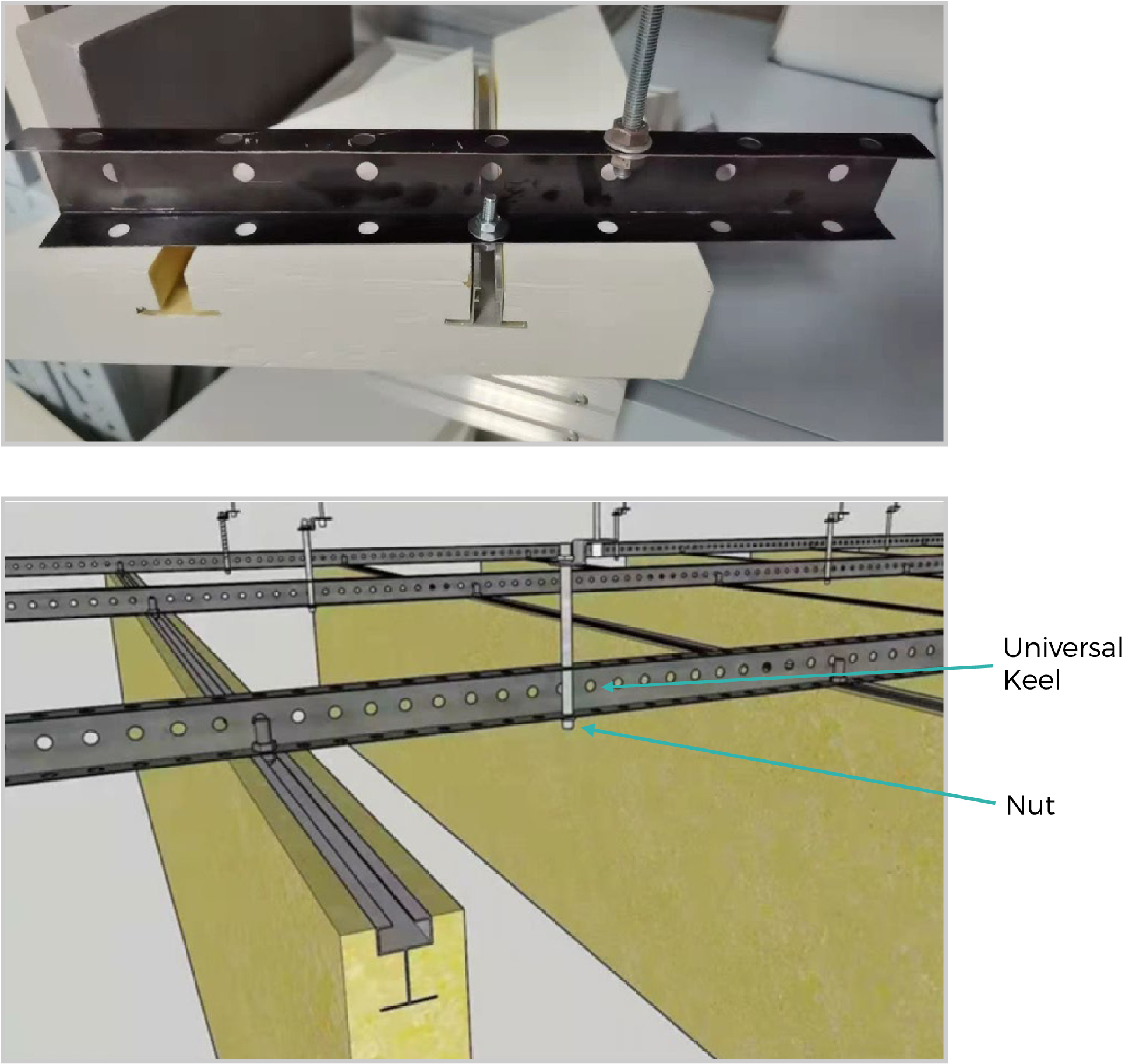

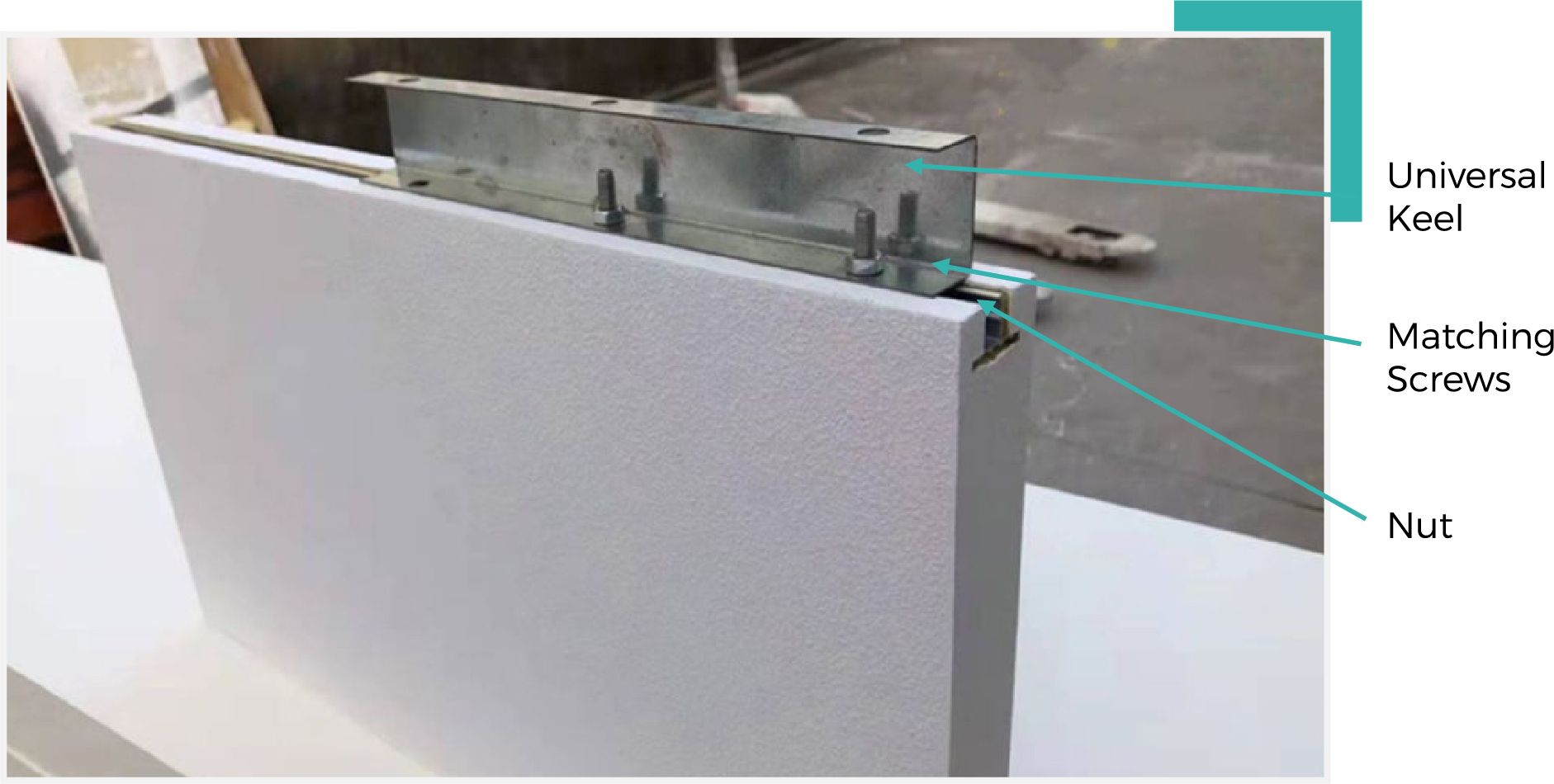

1. Put the nut into the keel, and then use the matching screw to connect the universal keel and the baffle
2. With a laser level instrument to set the ceilling, the general spacing is 800*600mm, make a mark, and lock the 8# boom belt to the top of the ceilling.
3. Connect the universal keel to 8#boom and lock the nut. Adjust the level and the installation is complete.

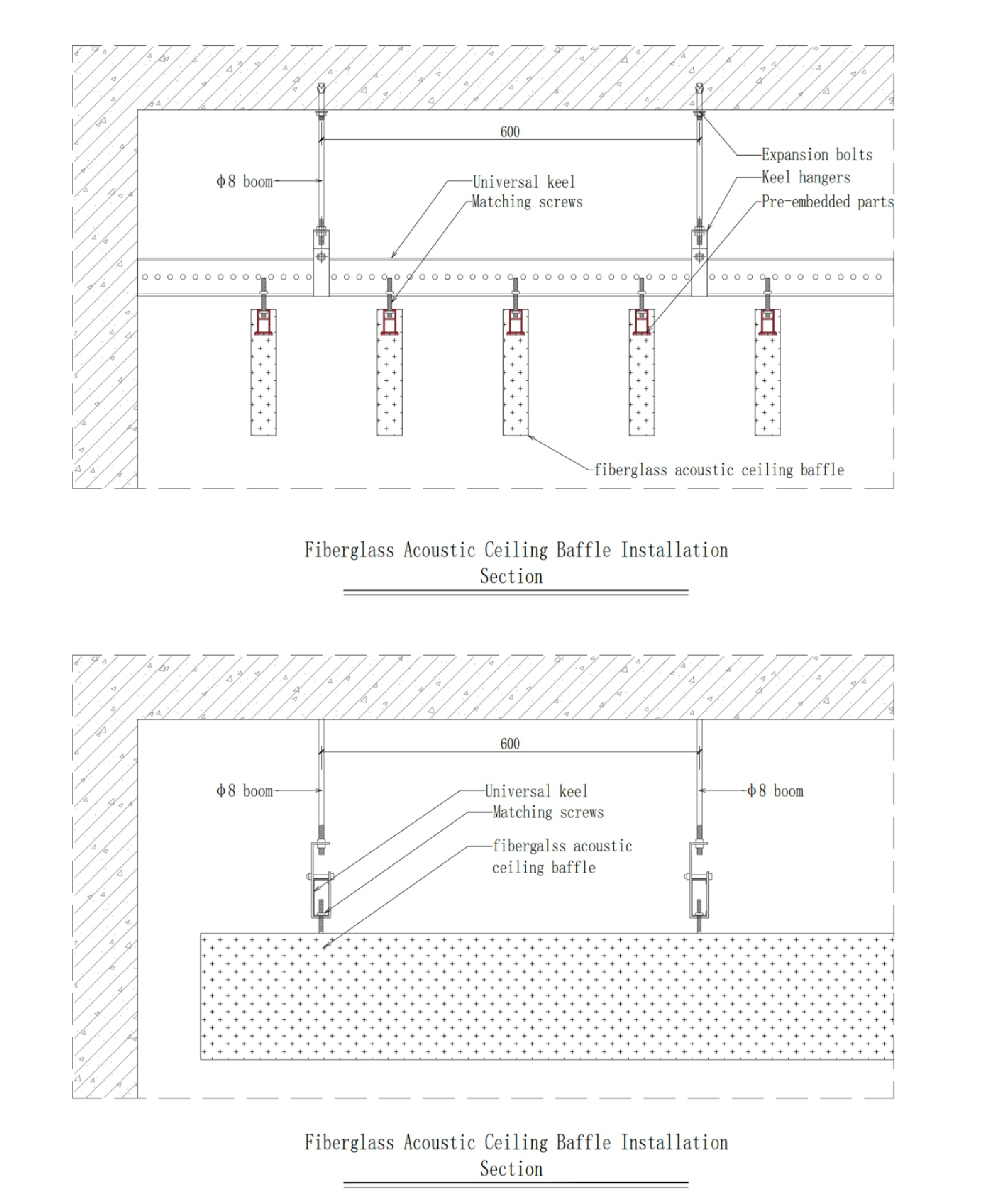

● Drawing Showing:
